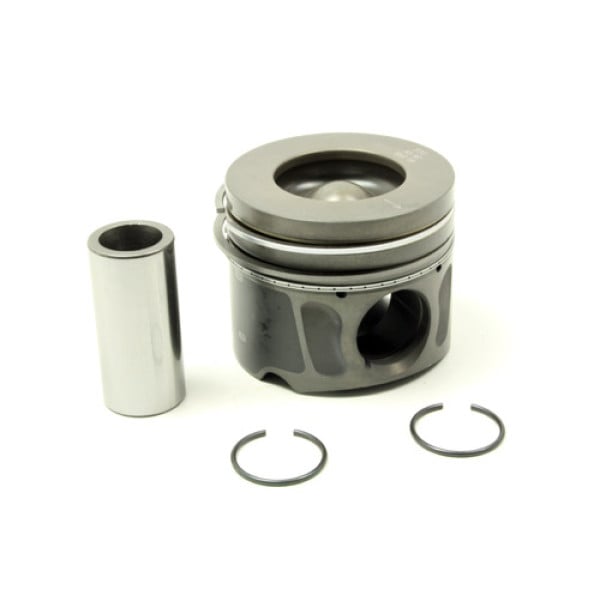

Piston Assy Std TDV6 3.0 for Discovery 4 (2010 – 2016) 3.0L V6 DOHC 24V Diesel - Complete with Rings, Pin and Clips – E304107
£66.12
Piston Assy Std TDV6 3.0 for Discovery 4 (2010 – 2016) 3.0L V6 DOHC 24V Diesel - Complete with Rings, Pin and Clips – E304107
Product Description
This is a standard-bore piston assembly for the TDV6 3.0 engine used in Land Rover and Jaguar applications, designed to restore correct compression and combustion chamber geometry following bore wear, scoring, or ring failure. The assembly includes the piston, piston rings, gudgeon pin, and retaining clips, providing all components required for a complete piston replacement. Using the correct standard (STD) size is critical - fitting an incorrect bore size will result in excessive piston slap, oil consumption, or catastrophic engine damage.
Key Features
- Standard bore specification - suitable for unworn or freshly honed bores within factory tolerance
- Supplied complete with compression rings, oil control ring, gudgeon pin, and circlips
- Designed for the 3.0L V6 DOHC 24V TDV6 diesel engine (LR/Jaguar AJ-V6D Gen III)
- Six pistons are required per engine; inspect cylinder bores for wear before fitting
Vehicle Fitment
Fits Discovery 4 (2010–2016), Range Rover Sport (2010–2013), Jaguar XJ (2010–2019), and Jaguar F-Pace, all equipped with the 3.0L V6 DOHC 24V TDV6 diesel engine.
Not sure about fitment? Feel free to get in touch at [email protected]
Product Fitments
| Vehicle | Marque | Engine | Category | Notes | Break From | Break To |
|---|---|---|---|---|---|---|
| DISCOVERY 4 2010 - 2016 | LAND ROVER | 3.0L V6 DOHC 24V Diesel | Engine Parts, Engine Kits | 3.0L V6 DOHC 24V Diesel - Complete with Rings, Pin and Clips | ||
| RANGE ROVER SPORT 2010 - 2013 | LAND ROVER | 3.0L V6 DOHC 24V Diesel | Engine Parts, Engine Kits | 3.0L V6 DOHC 24V Diesel - Complete with Rings, Pin and Clips | ||
| DISCOVERY 4 2010 - 2016 | LAND ROVER | All | Engine Parts, Engine Kits | 3.0L V6 DOHC 24V Diesel - Complete with Rings, Pin and Clips | ||
| RANGE ROVER SPORT 2010 - 2013 | LAND ROVER | All | Engine Parts, Engine Kits | 3.0L V6 DOHC 24V Diesel - Complete with Rings, Pin and Clips | ||
| XJ 2010 - 2019 | JAG2021 | All | Engine Parts, Engine Kits | 3.0L V6 DOHC 24V Diesel - Complete with Rings, Pin and Clips | ||
| F-PACE | JAG2021 | All | Engine Parts, Engine Kits | 3.0L V6 DOHC 24V Diesel - Complete with Rings, Pin and Clips |
